CMM Inspection for Machined Castings: What to Define First

A casting inspection program built around CMM data sounds simple: put the part on the machine, run the program, get a pass/fail. In practice, the measurement is the easy part. The decisions made before the probe touches the surface decide whether the numbers mean anything. For machined castings those decisions are more complicated than for billet parts, because you are inspecting two different things at once: a machined feature you fully control, and an as-cast surface shaped by a process that has its own variation. Here is what to define first, in the order that matters.

Define the Datum Structure Before Anything Else

A CMM does not measure parts. It measures relationships between features: a face to a bore, a hole pattern to a datum surface. If the drawing does not define those relationships, the operator picks his own, and his choice may not match how the part functions in your assembly.

For machined castings, the first rule is to prefer machined datums. A faced surface or a machined bore is repeatable. An as-cast surface is not. It shifts slightly between castings due to pattern or die variation, and its texture makes probing inconsistent. One probe hit on a rough surface can catch a high spot and fail a tolerance that the actual feature would pass.

If you need as-cast surfaces as datums — large housings often do — define datum targets: small, specific areas, not an entire surface. That gives the inspector a repeatable place to probe and gives the casting process a defined objective.

There is a second datum buyers forget: the machining setup. The CMM setup should reproduce how the part sits in the CNC fixture. If machining locates off a cast surface and inspection locates off a machined surface, the two processes can disagree. Raise this conflict during engineering review, before tooling is cut. Waking’s process starts with drawings and requirements, then moves to engineering review and quotation. That review is the right place to argue about datums.

Separate Casting Tolerances from Machining Tolerances

Machined features can hold tight dimensions. As-cast features cannot, and no CMM inspection changes that. Investment casting delivers near-net shape with good consistency, but it is still a casting process. Its tolerances live on a different scale from CNC machining tolerances.

So separate the two worlds on the drawing. Mark which features are functional: sealing faces, mating bores, mounting patterns, wall thickness in pressure areas. Put tight tolerances there. For cosmetic surfaces and non-critical contours, give the casting process room to breathe.

Over-tolerancing is a real cost driver. Every tight tolerance adds programming time, measuring time, and scrap risk. Worse, a CMM report that flags an irrelevant surface distracts from the features that actually matter. If you don’t know which features are functional, you are not ready to send the part out for quotation.

Ask the supplier to challenge your tolerances during engineering review. A supplier that silently accepts an impossible drawing is setting you up for either a high price or a part that fights the drawing in production. You want someone who says: this feature is cast, that one is machined, and here is where your tolerance as written will not work.

Agree on the Setup and Probing Strategy

The same part, the same CMM, and a different setup gives different results. This is not a quality problem; it is physics. Thin-walled castings flex. Large housings sag under their own weight. A part measured in a free state can show deviations that disappear when it is bolted into your assembly — or the other way around.

Define the restraint. Which features are clamped, and which rest free? How is the part supported in your application? For non-rigid parts, the support philosophy matters more than the tolerance itself. Tell the inspector the orientation the part sits in during service, and let the CMM setup match it.

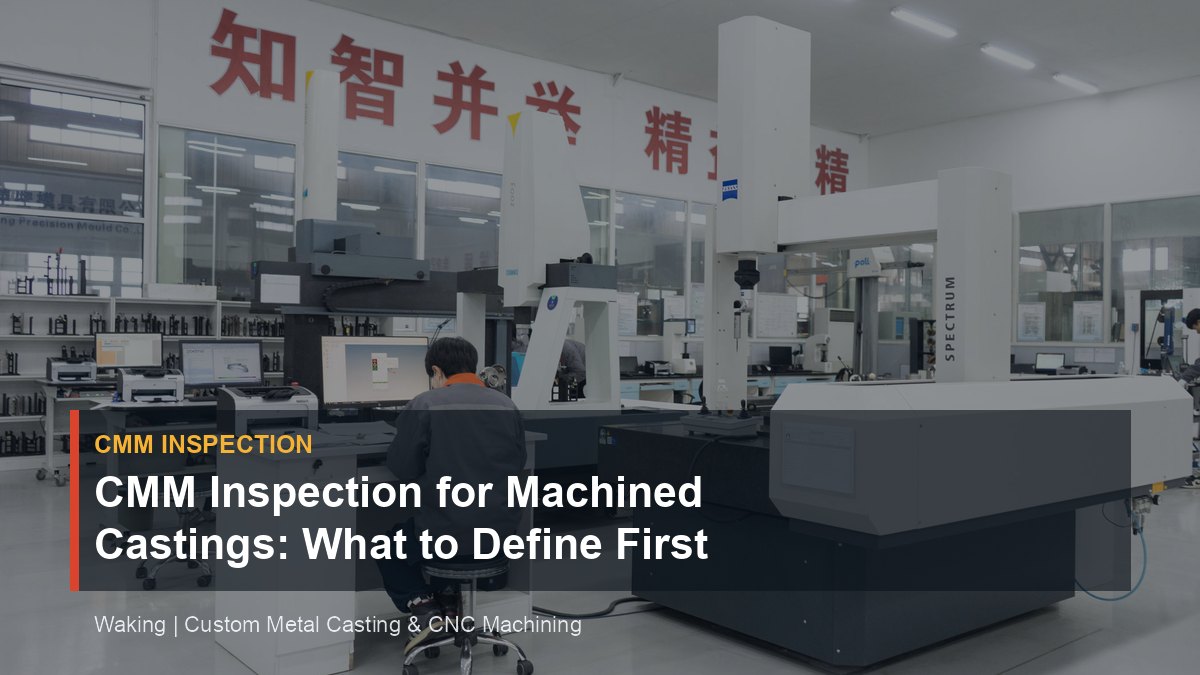

Also decide how the CMM probes as-cast surfaces. A single point on a rough surface proves little. If a cast contour carries a profile tolerance, the program should scan a defined area. Waking runs two CMM systems, a COORD3 and a ZEISS SPECTRUM, and both handle point probing and scanning. The capability is not the issue; the question is whether the program was written for your part’s actual geometry and function.

Because machining and inspection happen in the same building — Waking operates 400+ CNC machines in-house — the inspection setup can be matched to the machining setup. That coordination is harder to guarantee when casting and machining are subcontracted to different companies.

Remember What a CMM Cannot See

A CMM verifies outside geometry and nothing else. It cannot detect a shrinkage cavity under a machined surface. It cannot tell you whether a gas hole connects two pressure chambers. For castings, internal soundness is often the bigger risk than dimensional error. A dimensional deviation shows up at inspection. An internal void stays invisible until the part leaks, cracks, or fails in the field — and the warranty cost lands on you.

This is why casting inspection is never a one-machine job. Internal defect screening needs X-ray. Waking uses an XTH320 X-ray system for internal NDT, screening for gas holes and shrinkage in critical areas. Material structure and hardness are checked on separate equipment: an inverted metallurgical microscope and a hardness tester. Impact properties are verified on a pendulum impact tester, including low-temperature testing. Roundness and profile get dedicated instruments. None of this appears on a CMM report.

If your part contains pressure — a valve body in CF8 or CF8M stainless, for instance — add leak testing to the package. The geometry can be perfect and the wall still unsound. The CMM says the part is shaped correctly. Leak testing says it will hold the medium. You need both.

So when a supplier quotes inspection, ask what the full package includes, and get the answer in writing. Dimensional, internal soundness, material verification, and leak testing are four different answers to the same question: is this casting acceptable?

Lock Down Sampling and Traceability Before the First Article

A CMM report is a snapshot of one part at one moment. It proves that part matched the nominal model within the defined tolerances. It proves nothing about the other castings in the batch. Sampling rules matter as much as the measurement itself.

Define the first article up front. First Article Inspection on a machined casting is where everything gets tested: datum interpretation, probing strategy, tolerance feasibility, and report format. Waking follows a formal sample approval process — first articles are reviewed and approved before production. Use that gate. If something in the drawing does not work, you want to know while tooling changes are still cheap, not after a batch is sitting in a crate.

Then define the batch plan. How many parts from each lot get measured, and at which machining stage? Some features are best checked right after machining, while the part is still set up. Others only make sense on the finished part. Don’t leave those decisions to whoever runs the CMM on the day.

Finally, traceability. A CMM report without a batch number is a decorative document. The report should connect to the lot, and the material certificate should be issued with the inspection records so you can pull the full history of any suspicious part. Waking’s traceability works this way, with batch records tying casting, machining, and inspection together in one package, under its ISO 9001 and IATF 16949 quality systems. That is the standard to expect.

Here is the order of operations that works, based on what we see in the shop:

1. Define the datum reference frame, and prefer machined datums.
2. Separate functional tolerances from cosmetic ones, and set casting and machining tolerances on their own scales.
3. Agree with the supplier on setup and probing strategy.
4. Define the complete inspection package: CMM plus X-ray, material checks, and leak testing where the part needs them.
5. Lock the sampling plan and traceability before the first article runs.

CMM inspection for machined castings is only as good as the definitions that precede it. The supplier that asks hard questions during engineering review — about datums, tolerances, and setup — is doing you a favor. Send the drawings, expect pushback, and agree on the report before the first part is cut. That is how you get a casting inspection document you can base a purchasing decision on.

Frequently Asked Questions

Why should we prefer machined datums over as-cast surfaces when defining a CMM inspection program for castings?

Machined datums such as a faced surface or a machined bore are repeatable, while as-cast surfaces shift slightly between castings and their rough texture makes probing inconsistent. A single probe hit on a rough surface can catch a high spot and fail a tolerance that the actual feature would pass. If as-cast surfaces must be used, define small datum targets instead of the entire surface.

Should casting tolerances and machining tolerances be specified the same way on the drawing?

No. Machined features can hold tight dimensions, but as-cast features cannot, even with investment casting's near-net consistency. Mark only functional features such as sealing faces, mating bores, and mounting patterns with tight tolerances, and give non-critical contours the casting process's natural variation. Over-tolerancing adds programming time, measuring time, and scrap risk.

How do we define the setup and probing strategy for a thin-walled or large casting so CMM results are repeatable?

Define which features are clamped and which rest free, and support the part the way it is supported in service, because thin-walled castings flex and large housings sag under their own weight. For as-cast surfaces carrying a profile tolerance, specify scanning a defined area rather than relying on a single point, which proves little on a rough surface. Matching the CMM setup to the CNC fixture also avoids disagreement between machining and inspection.

Can a CMM detect internal shrinkage cavities or gas holes inside a machined casting?

No. A CMM verifies outside geometry only and cannot see internal soundness. Internal defect screening requires X-ray NDT, and pressure-containing parts should also have leak testing. Ask the supplier to document the full inspection package in writing, because none of the internal checks appear on a CMM report.
